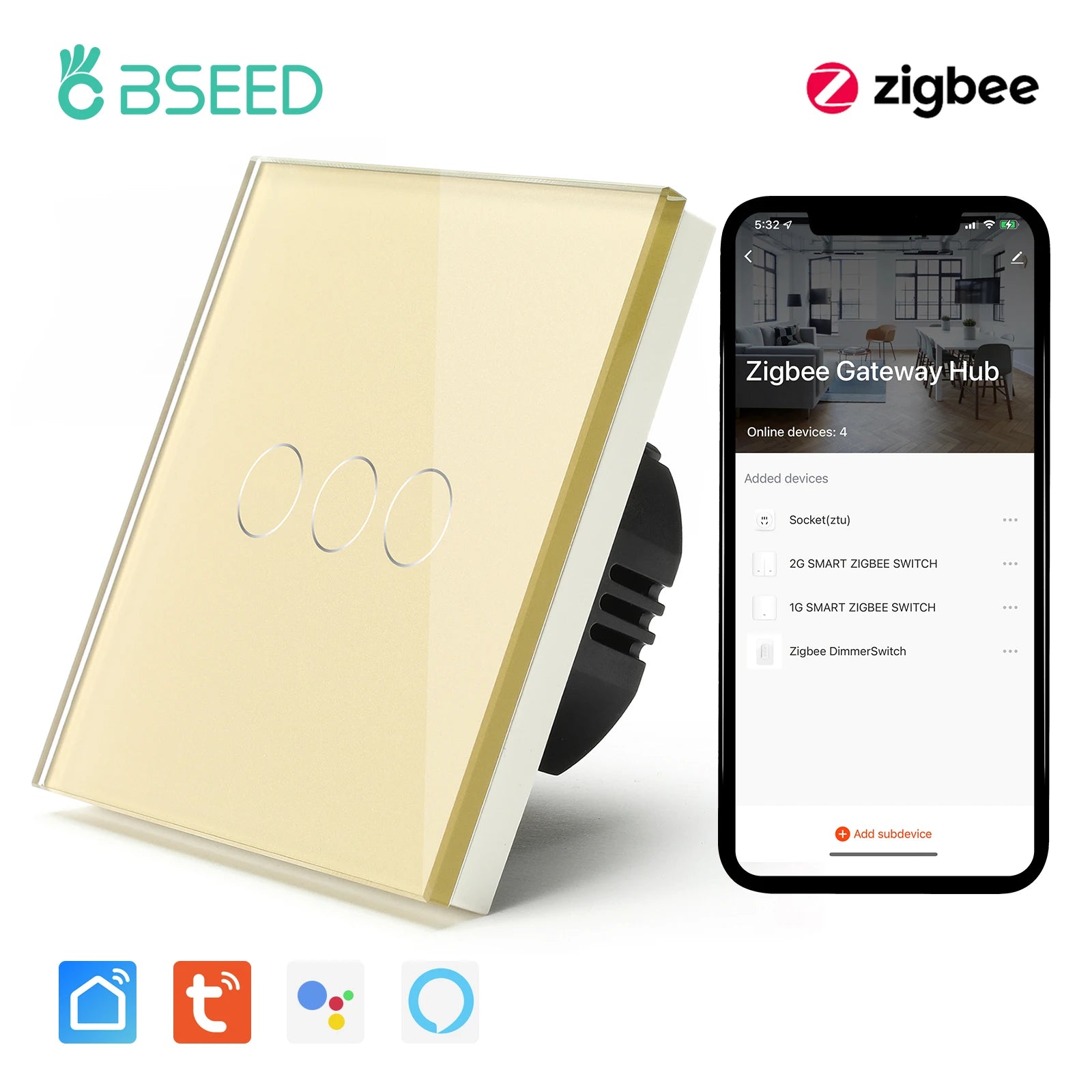

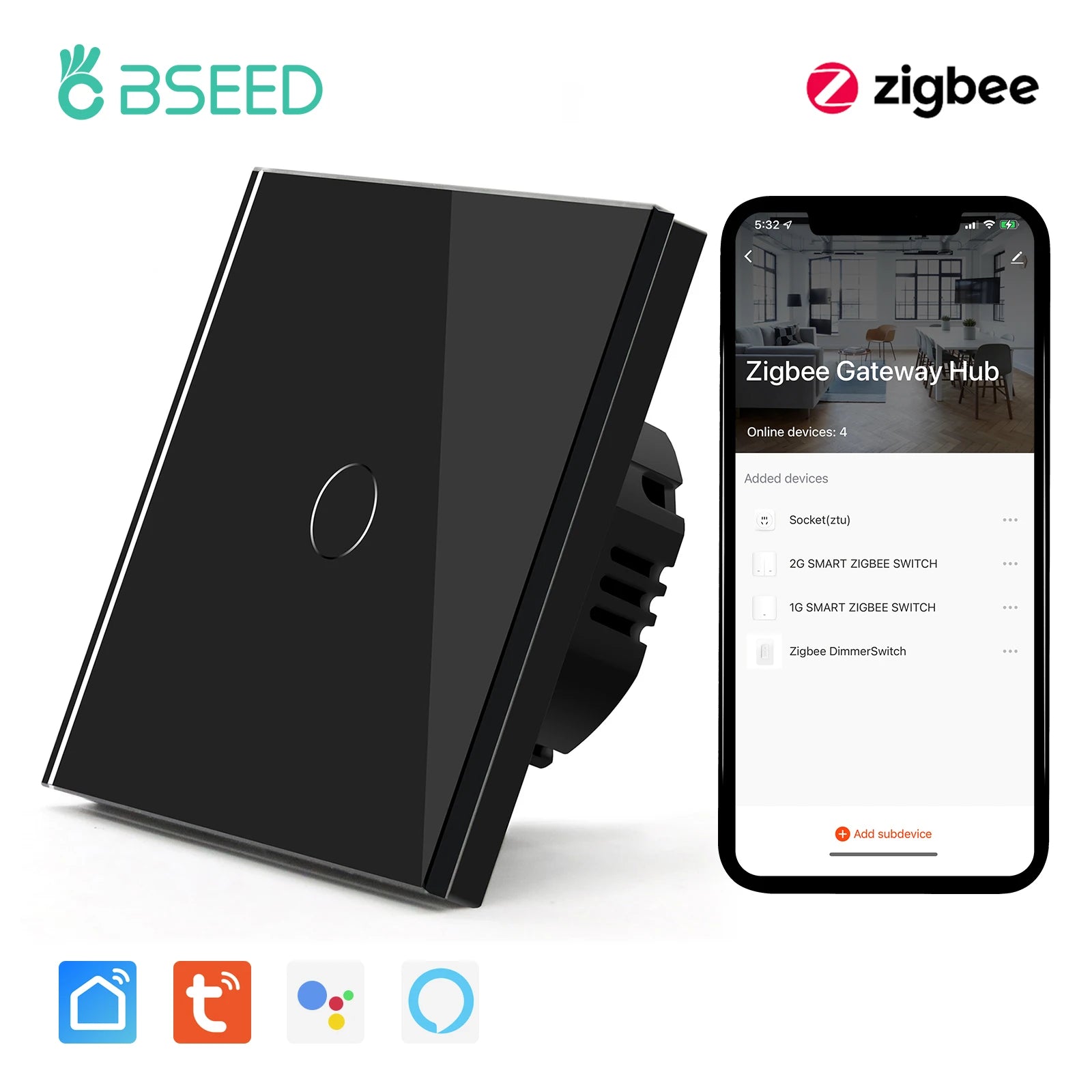

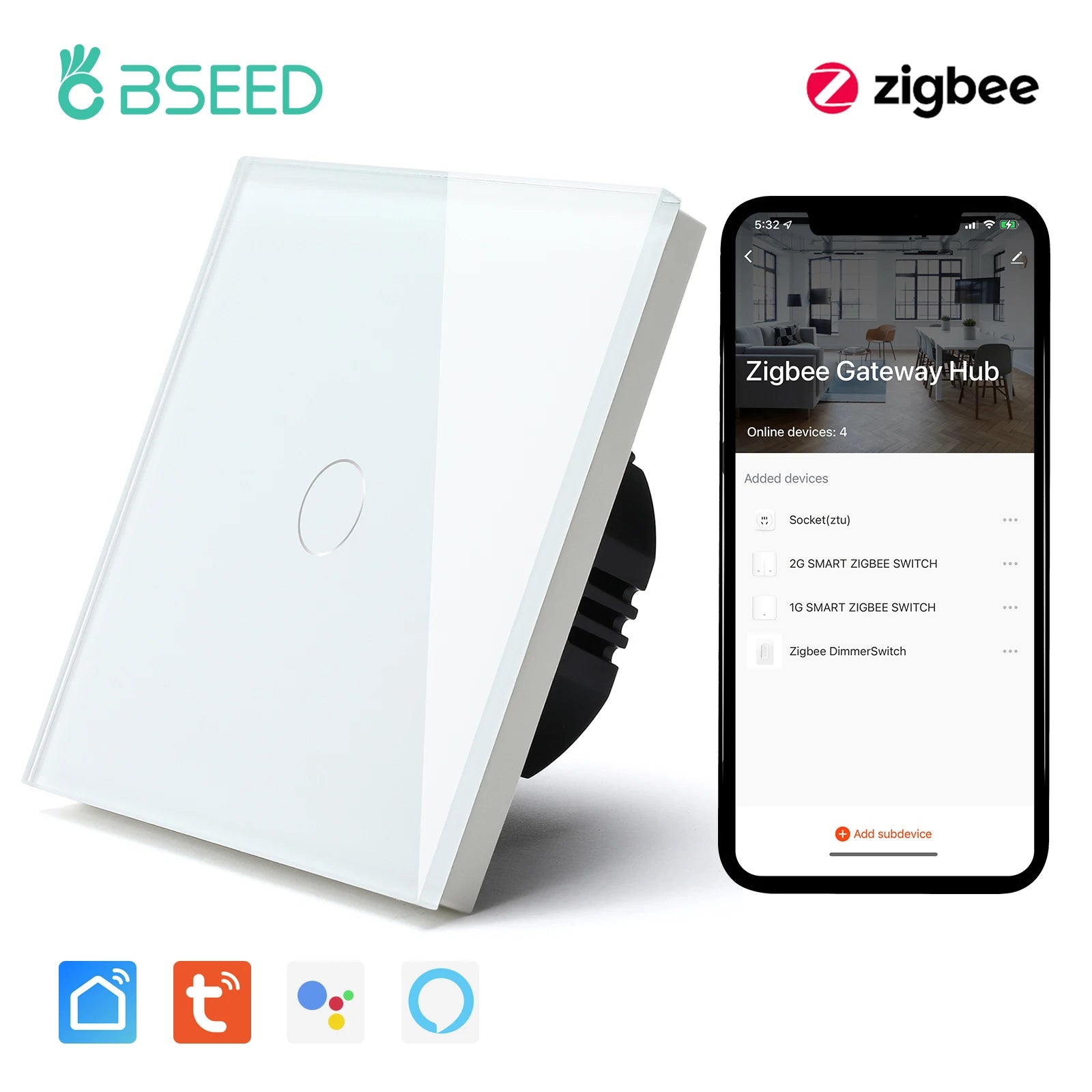

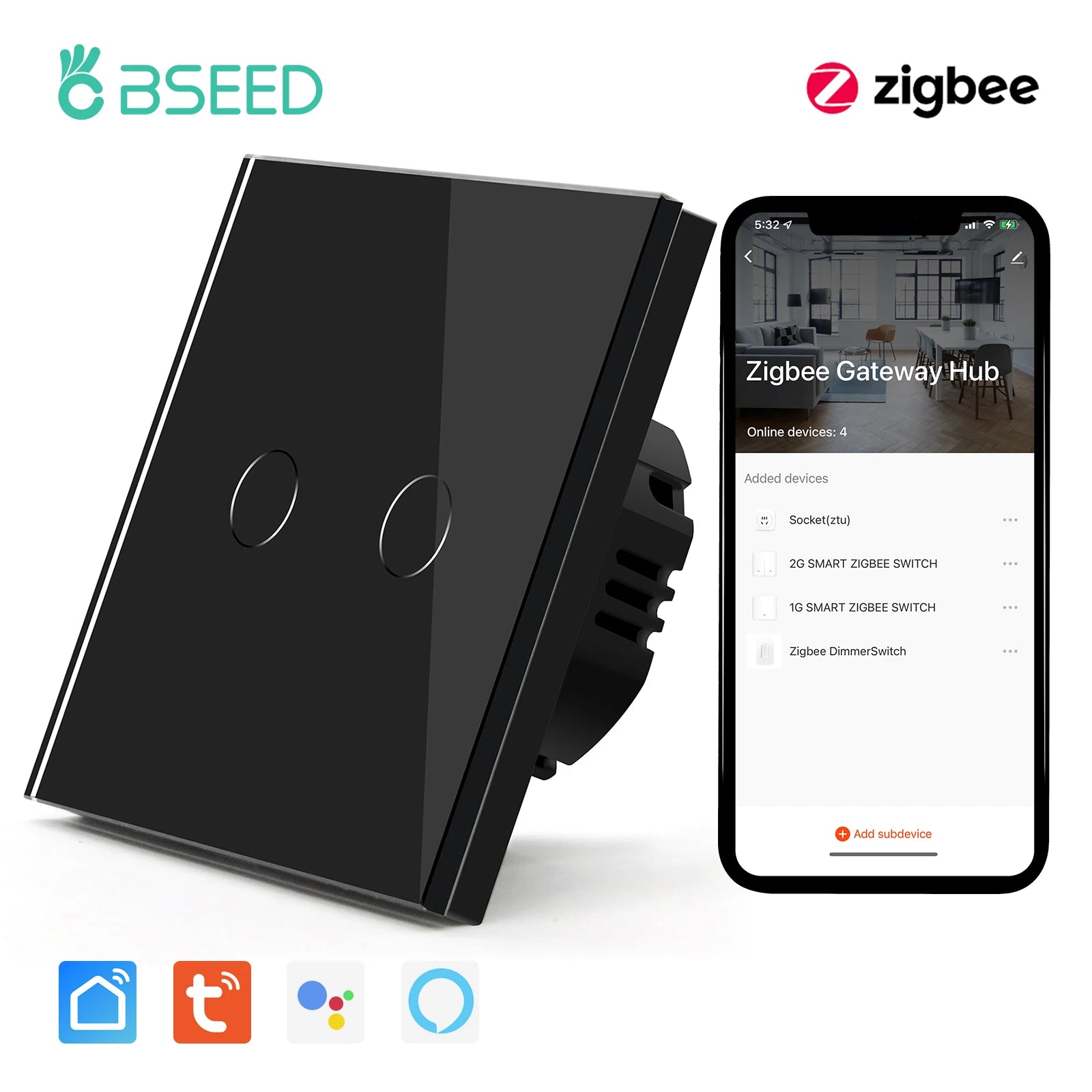

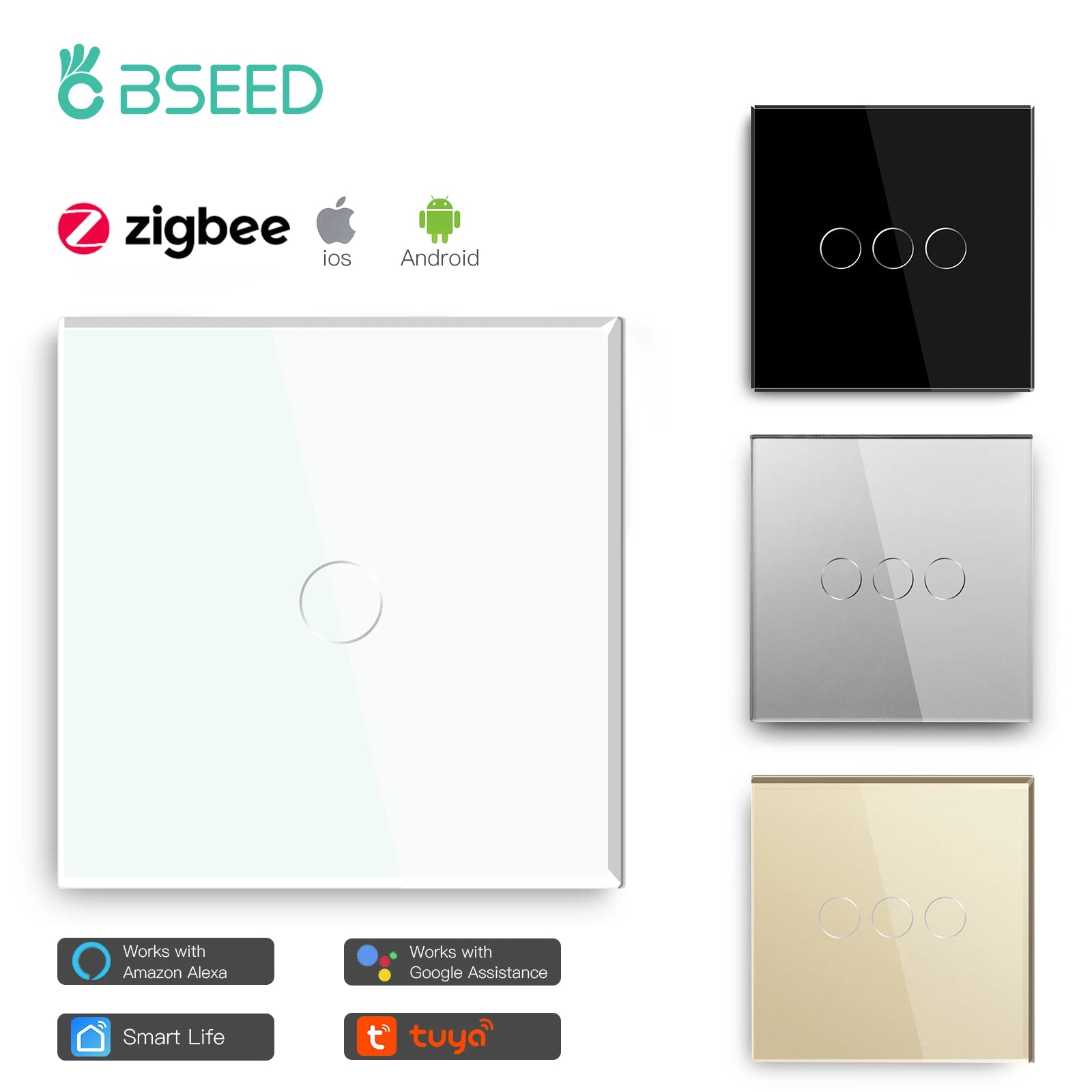

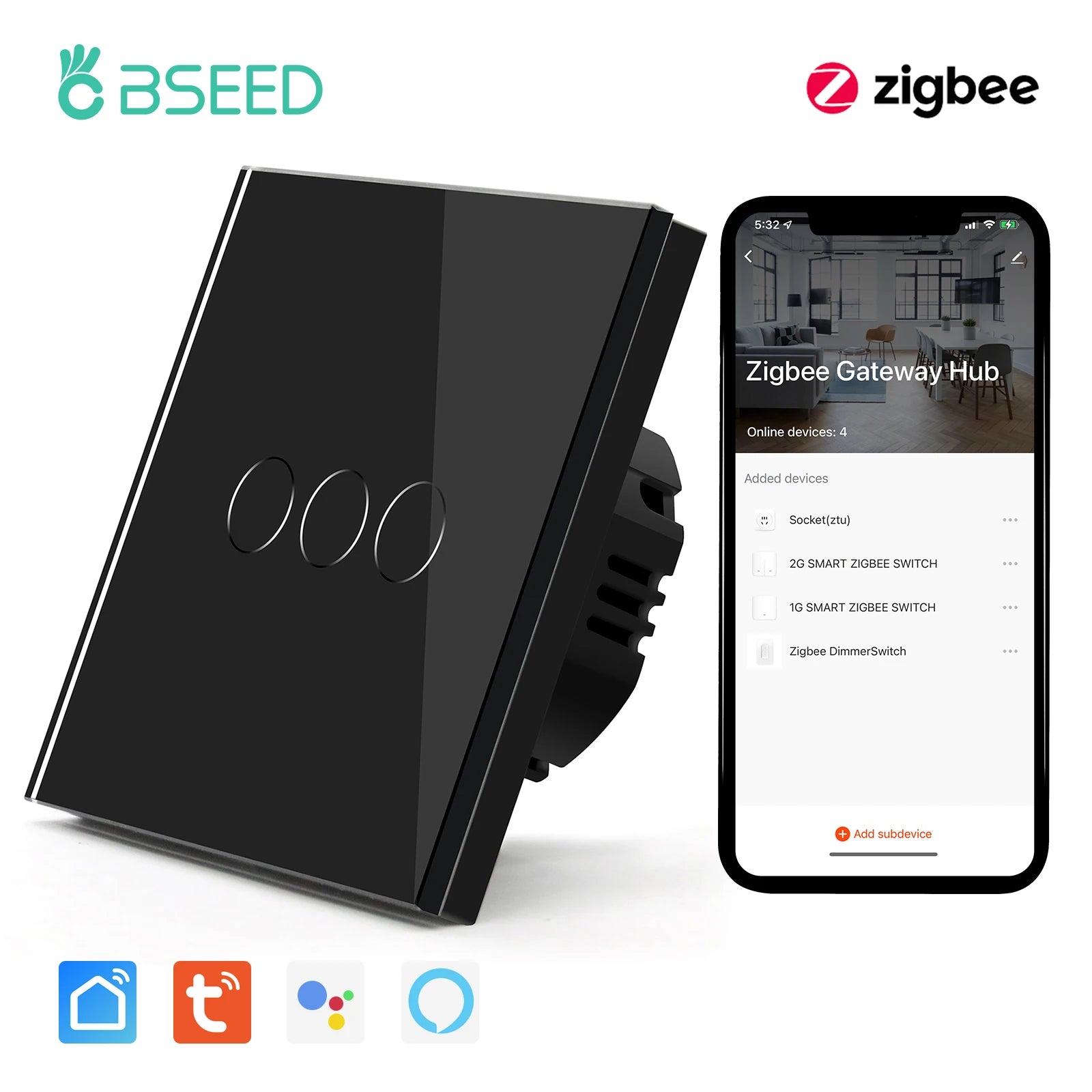

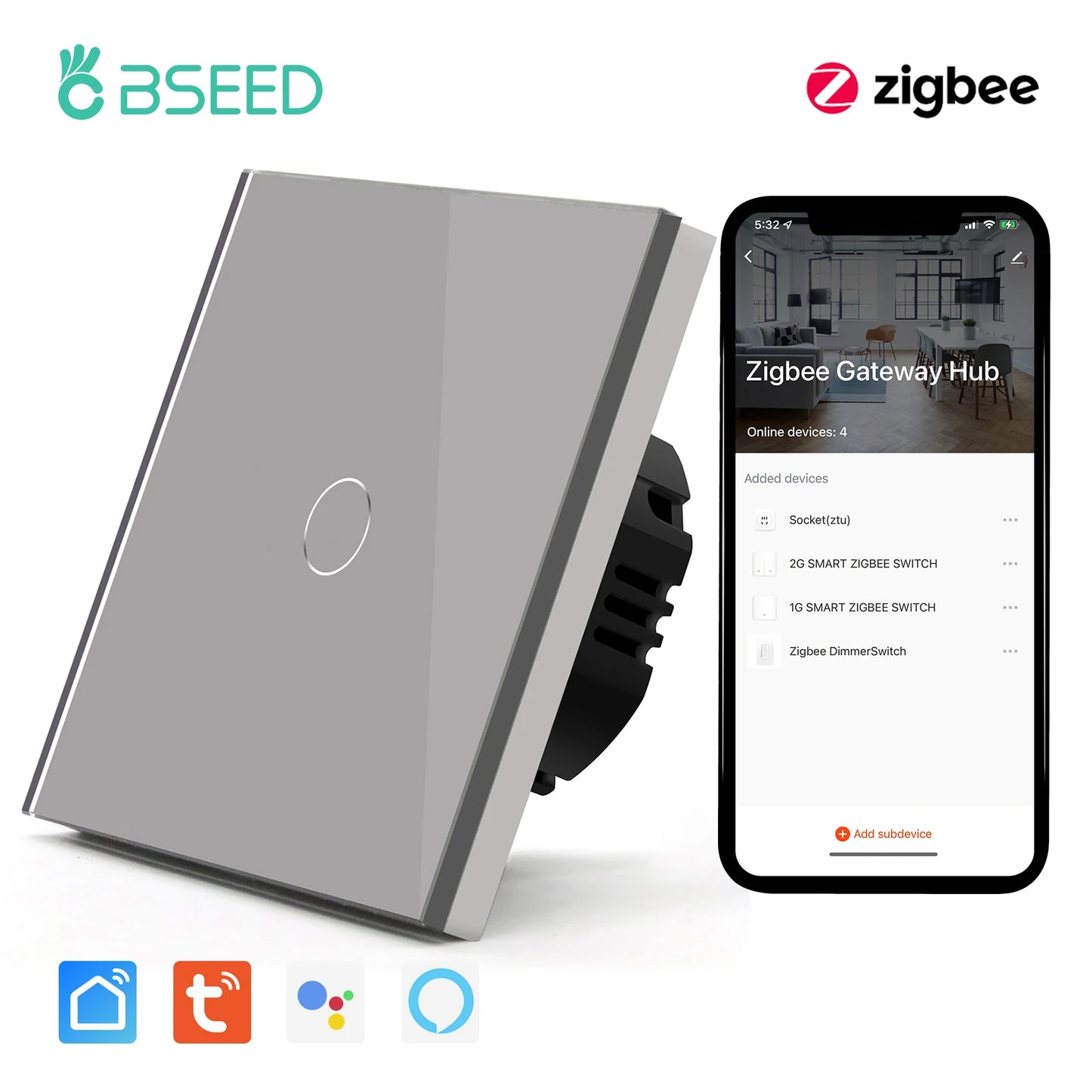

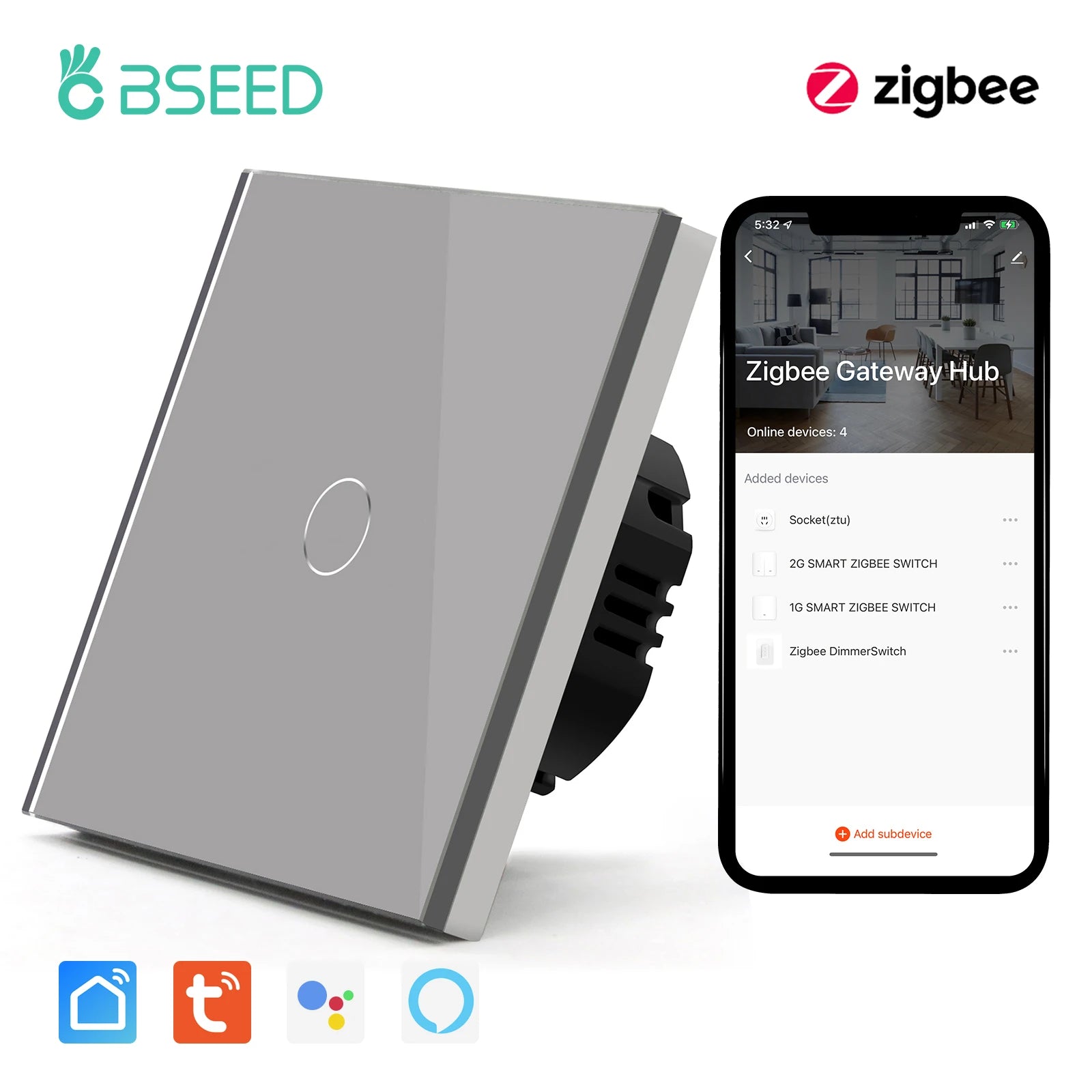

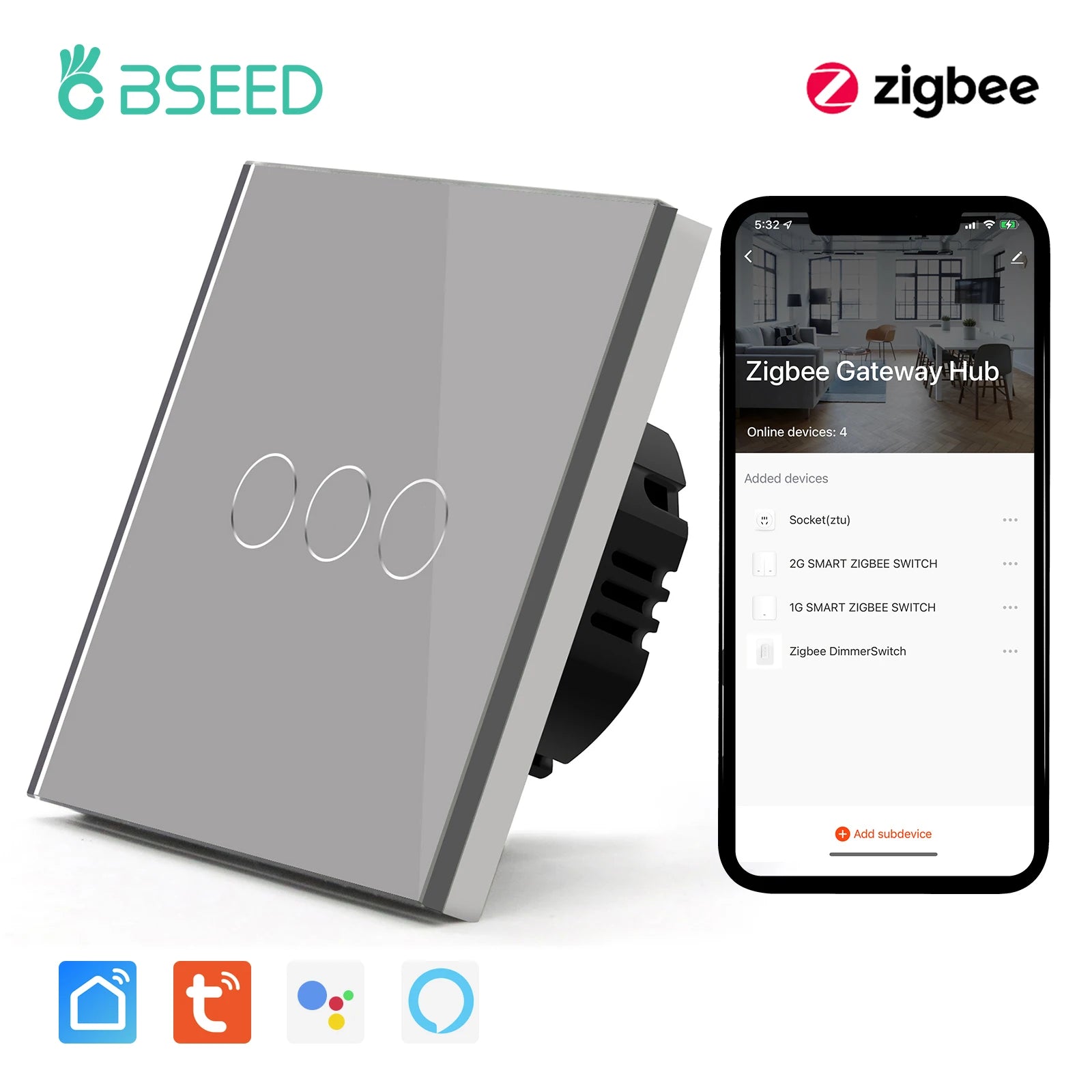

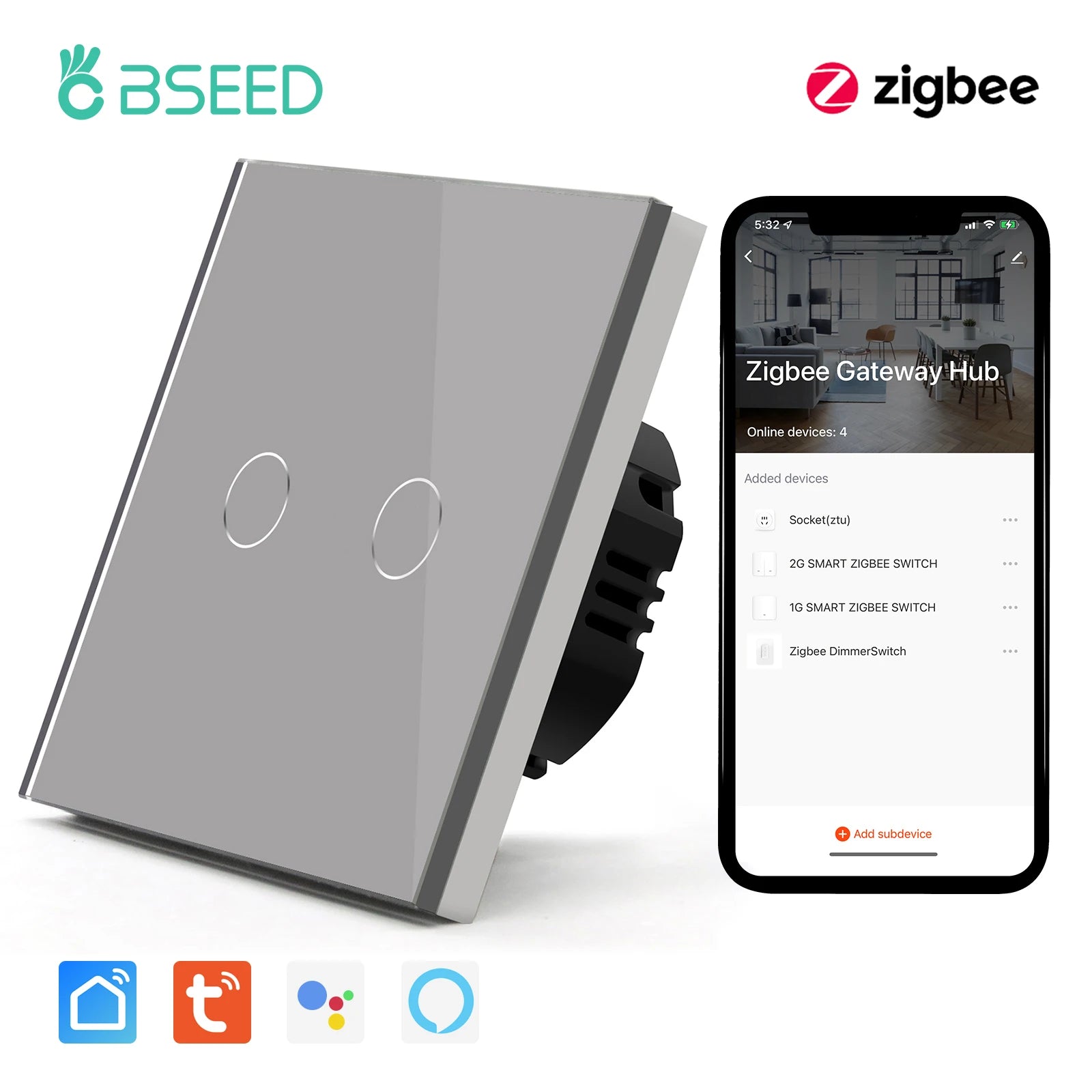

BSEED Zigbee 1/2/3 Gang Smart Switch Single Live LED Buttons

Glass Panel Work With Google Home EU Touch Switch Smart Life

Product Introduction:

Max. Current: 10A

Load: 1000W/Gang

Wireless consumption: ≤0.2W

Power Supply: 90-250V AC  50/60HZ

Relative Humidity:≤ 95%

Working Temperature: -20 ℃~+70℃

Certification:CE, BS, RoHS, GCC, FC

Wireless standard: IEEE 802 15.4

WIFI Standard: ZigBee 2.4 GHz

APP: Tuya/Smart Life

Voice Control: Google Home, Amazon Alexa

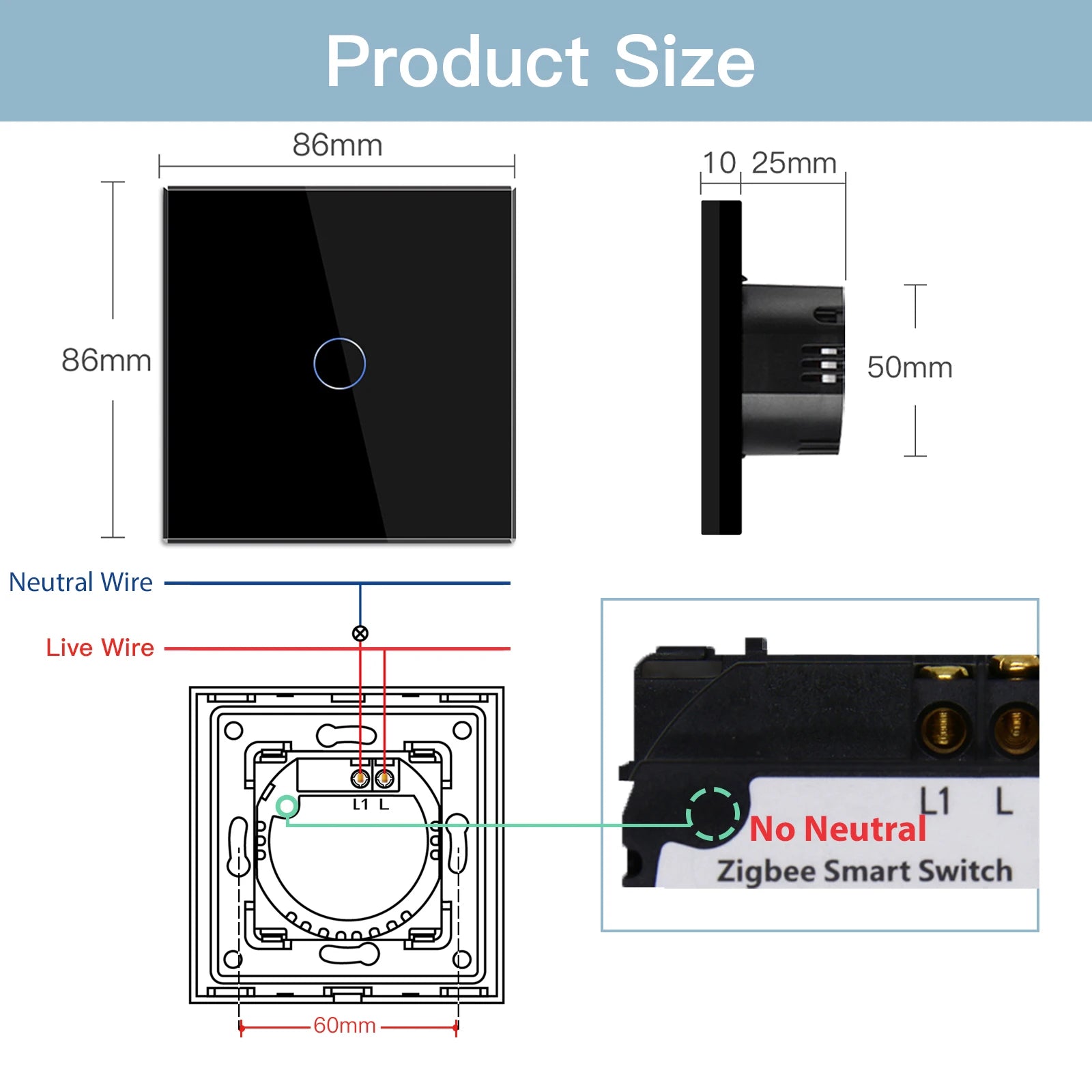

Wire: No Neutral Wire

Back Light: ON-light Blue OFF-Weak Blue[can turn it off ]

Module shape:Round Wall Box Type:Round & Square

Main Features:

1. Bseed Products are easy to assemble and control

2. Bseed Products are Fireproof and Waterproof. Protection Against Electric Shock for Your Family

3. Crystal tempered glass,will not shatter if broken, safety protection in every way

4. Easily choose the installation method with horizontal or vertical to cater to your desired style

5. Night indicator, locate in darkness with weak blue light

6. Control in various way, Suit with Smart Life/Tuya Smart, and compatible with Google Home, Amazon Alex

Attention:

You have to cut off the power and during the installation.

1.  Multi-Control Association: ZigBee switches have 1/2/3/4way and can control one light from Different places(the maximum is 4 way).

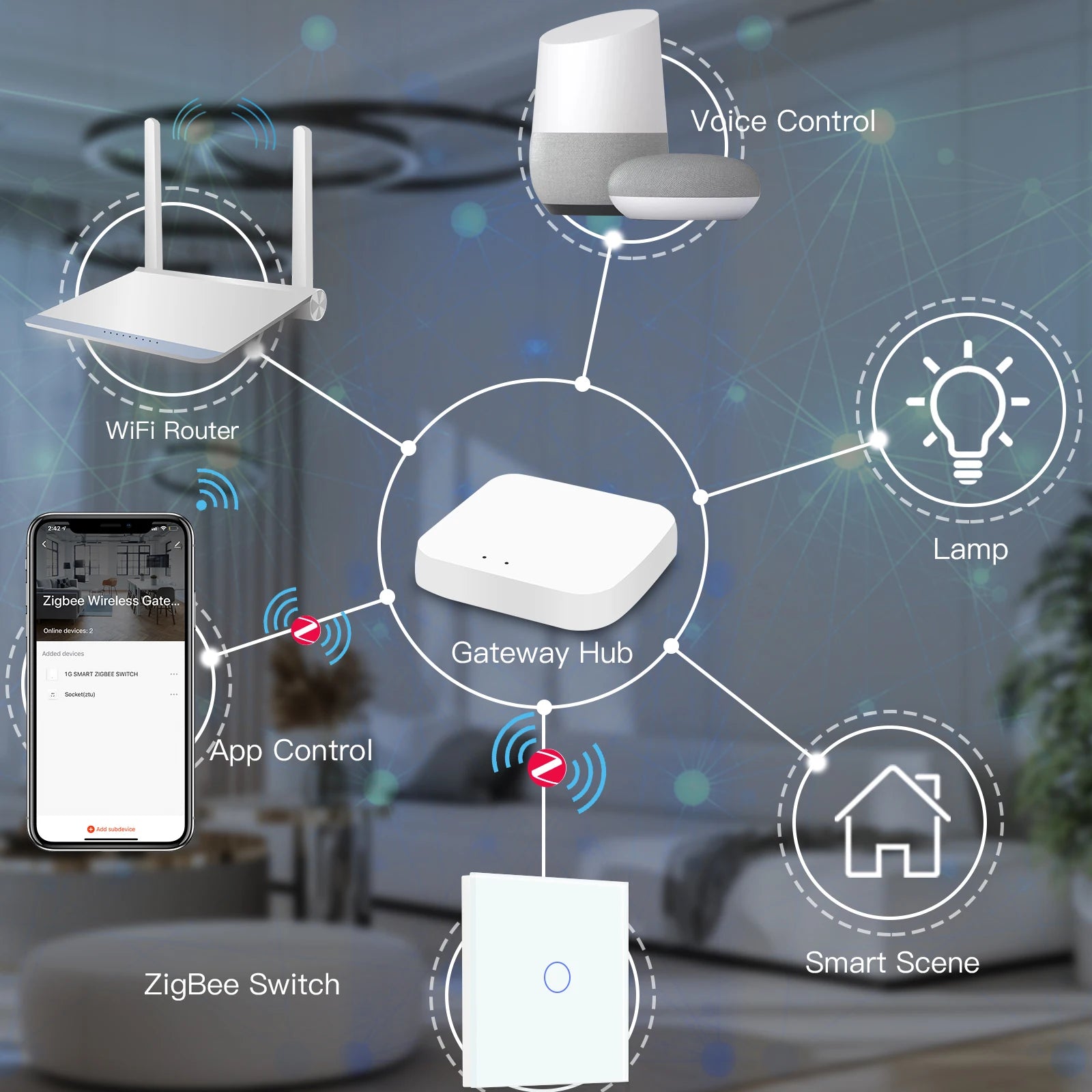

2. ZigBee Series need one ZigBee Gateway to control

3. Bseed multi control (2/3 way) switch can only adapt with the Same Bseed multi control Series (four series:Mechanical, Regular, WiFi, ZigBee)

FAQ:

Q: Does yourZigbee touch sensor light switch need a neutral wire to install?
A:No, it doesn't need a neutral wire to install.

Q: Does your ZigBee light switch can work with Smart Life Tuya or Google Alexa?

A:Yes, it can work with them.

Q: Do you offer a 2-way ZigBee touch light switch?

A:Yes, we offer a 2-way netural wire ZigBee touch switch, it functions stably.By the way you must at least buy 2 pieces 2-way switches to achieve it. ( APP use multi-control association function)  But, our single live ZigBee do not have 2 way type.

Q: Does your ZigBee touch light switch have a backlight?

A:The blue backlight will be on when the wiring is successful. Allowing you to notice Our touch switch clearly in the dark.

Q: Does our switches can install by vertical or Horizontal for 157mm/228mm glass panel？

A:Yes, we can install it in different ways, but you will see the small holes. (The small holes used to open the glass cover)
